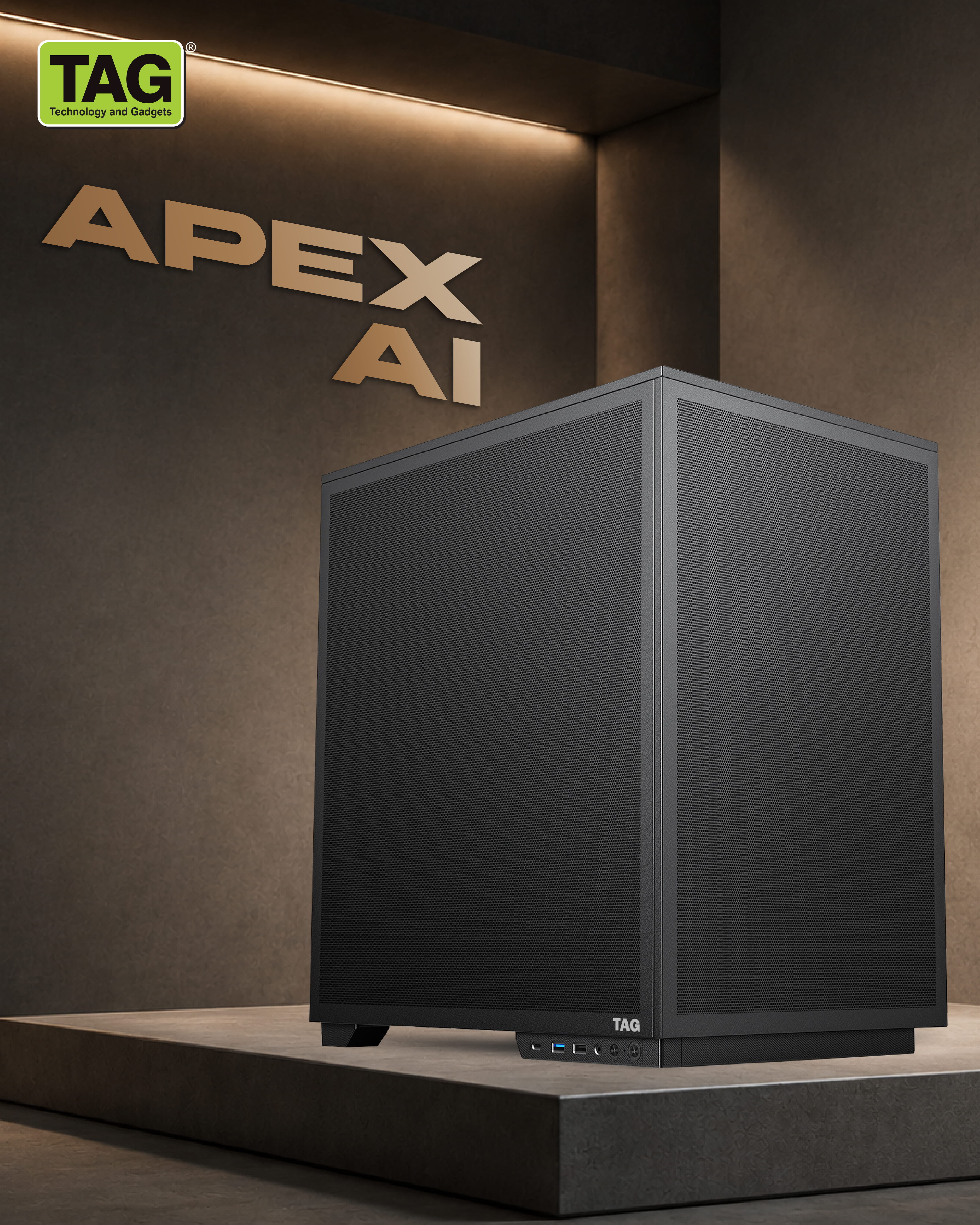

TAG APEX AI WORKSTATION CASE

• AI & Multi-GPU Ready : Supports up to 9 professional GPUs with 11 expansion slots.
• Wide Motherboard Support : HPTX, SSI-EEB, E-ATX (up to 33mm), ATX & Micro-ATX compatibility.
• Massive Storage : 10/2 (2.5" convertible) cage + 2x 2.5" SSD bays for enterprise data storage.
• Extreme Cooling : Supports up to 4x 360mm radiators & 16x 120mm fans.
• Full Mesh Airflow : All-side mesh panels for high-efficiency thermal performance.
• Dual PSU Support : Built for high-power AI & multi-GPU computing environments.
• Modern Connectivity : Front USB Type-C, USB 3.0 & USB 2.0 for versatile peripheral connectivity.
• Workstation Ready : Engineered specifically for AI workloads, 3D rendering, deep learning & HPC.

Feature 1 Feature 2 Feature 3 Feature 4 Feature 5 Feature 6

SPECIFICATIONS

Dimensions L525 x W318 x H510mm
Form Factor Full Tower
Materials SPCC 0.8mm / Solid Mesh Panel
Mainboard Support E-ATX (Upto 33mm), ATX, Micro-ATX, ITX (RC Edition), HPTX, SSI-EEB
Front Access & Controls Power, Reset, 1 x USB 2.0, 1 x USB 3.0, 1 x Type-C, TRSS Headphone (Single Jack)
Front/Side Panel Mesh / Solid panel

Drive Bays

Expansion Slots 11
3.5" / 2.5" 10/2 (2.5" Convertible) cage
2.5" 2

Fan Support

Front 6 x 120mm / 3 x 140mm
Top 6 x 120mm / 3 x 140mm
Shroud 3 x 120mm (optional)
Rear 1 x 120mm
Included Fan(s) 0

Radiator Support

Front 120 / 240 / 360mm
Top 120 / 240 / 360mm
Rear 120mm

Clearance

Max GPU Length ≤ 350mm
Max CPU Cooler Height ≤ 200mm
Max PSU Length Dual slot (Include cable) ≤ 300mm

Miscellaneous

Mesh All side mesh
Warranty 1 Year
