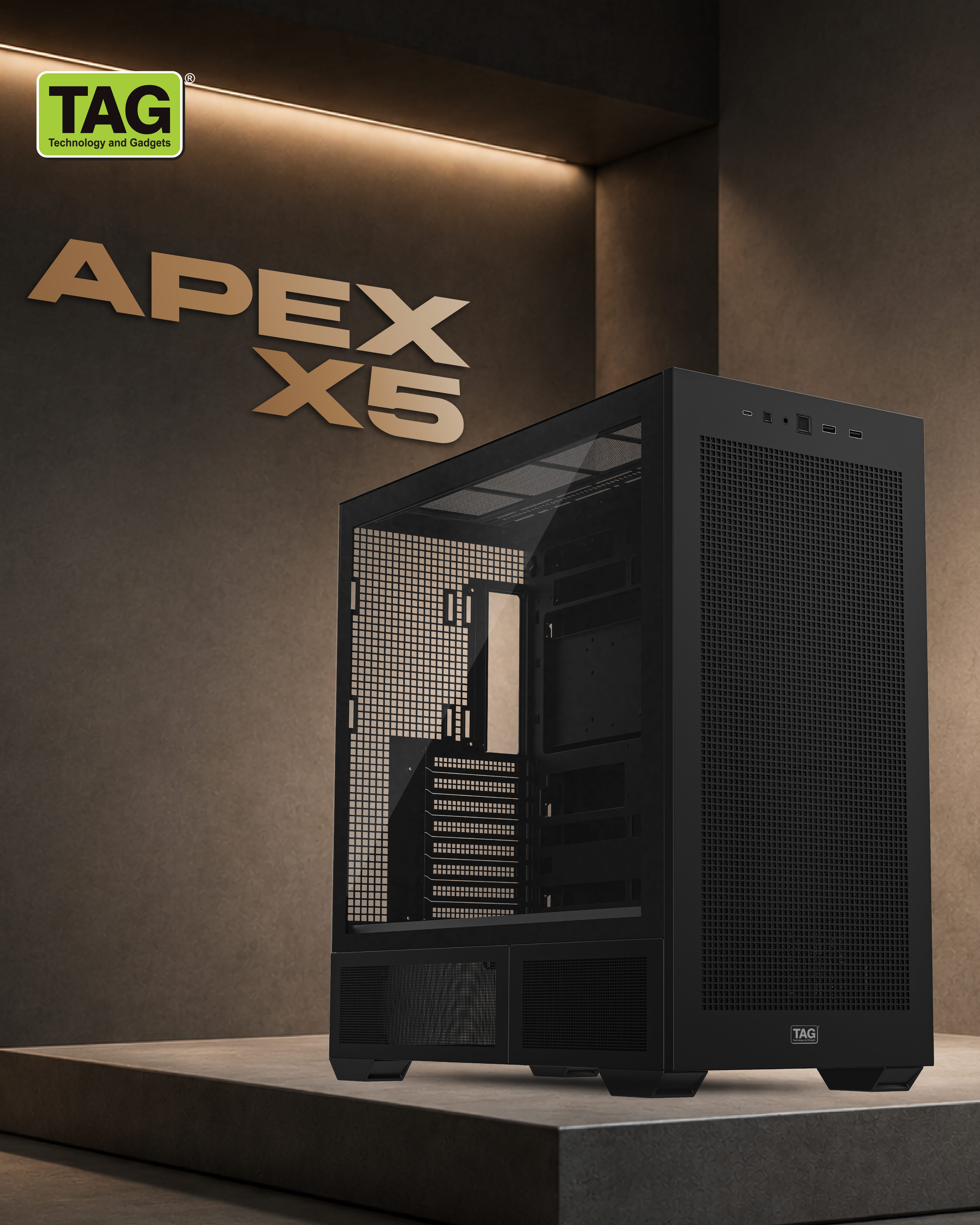

TAG APEX X5 WORKSTATION CASE

• AI & Multi-GPU Ready : Supports up to 8 expansion slots for high-performance builds.
• E-ATX Compatible : Supports E-ATX (up to 33mm), ATX & Micro-ATX motherboards.
• Massive Storage : 8 HDD + 5 SSD bays for professional and enterprise workloads.
• Extreme Cooling : Supports up to 480mm radiators & 10x 140/120mm fans.
• High-Airflow Mesh : Front & side mesh panels for optimized ventilation.
• High-Power Ready : Designed for multi-GPU & demanding workstation computing.
• Modern Connectivity : Front USB Type-C & dual USB 3.0 for high-speed transfers.
• Easy Component Access : Removable panels simplify installation, cable routing and upgrades.

Feature 1 Feature 2 Feature 3 Feature 4 Feature 5 Feature 6 Feature 7

SPECIFICATIONS

Dimensions L555 x W249 x H515mm
Form Factor Full Tower
Materials SPCC 0.8mm / ABS / Tempered Glass
Mainboard Support E-ATX (Upto 33mm), ATX, Micro-ATX, ITX (RC Edition)
Front Access & Controls Power, Reset, 2 x USB 3.0, 1 x Type-C, TRSS Headphone / Mic (Single Jack)
Front/Side Panel Mesh / Tempered Glass

Drive Bays

Expansion Slots 8
3.5" / 2.5" 8/5 (2.5" Convertible) side cage
2.5" 2

Fan Support

Front 3 x 120mm / 3 x 140mm
Top 4 x 120mm / 3 x 140mm
Side 3 x 120mm / 3 x 140mm (optional)
Shroud 3 x 120mm / 3 x 140mm
Rear 1 x 120mm / 1 x 140mm
Included Fan(s) 0

Radiator Support

Front 120 / 140 / 240 / 280 / 360 / 420mm
Top 120 / 140 / 240 / 280 / 360 / 420mm
Rear 120 / 140mm

Clearance

Max GPU Length ≤ 480mm
Max CPU Cooler Height ≤ 190mm
Max PSU Length (Include cable) ≤ 280mm

Miscellaneous

Mesh Top / Bottom
Warranty 1 Year
